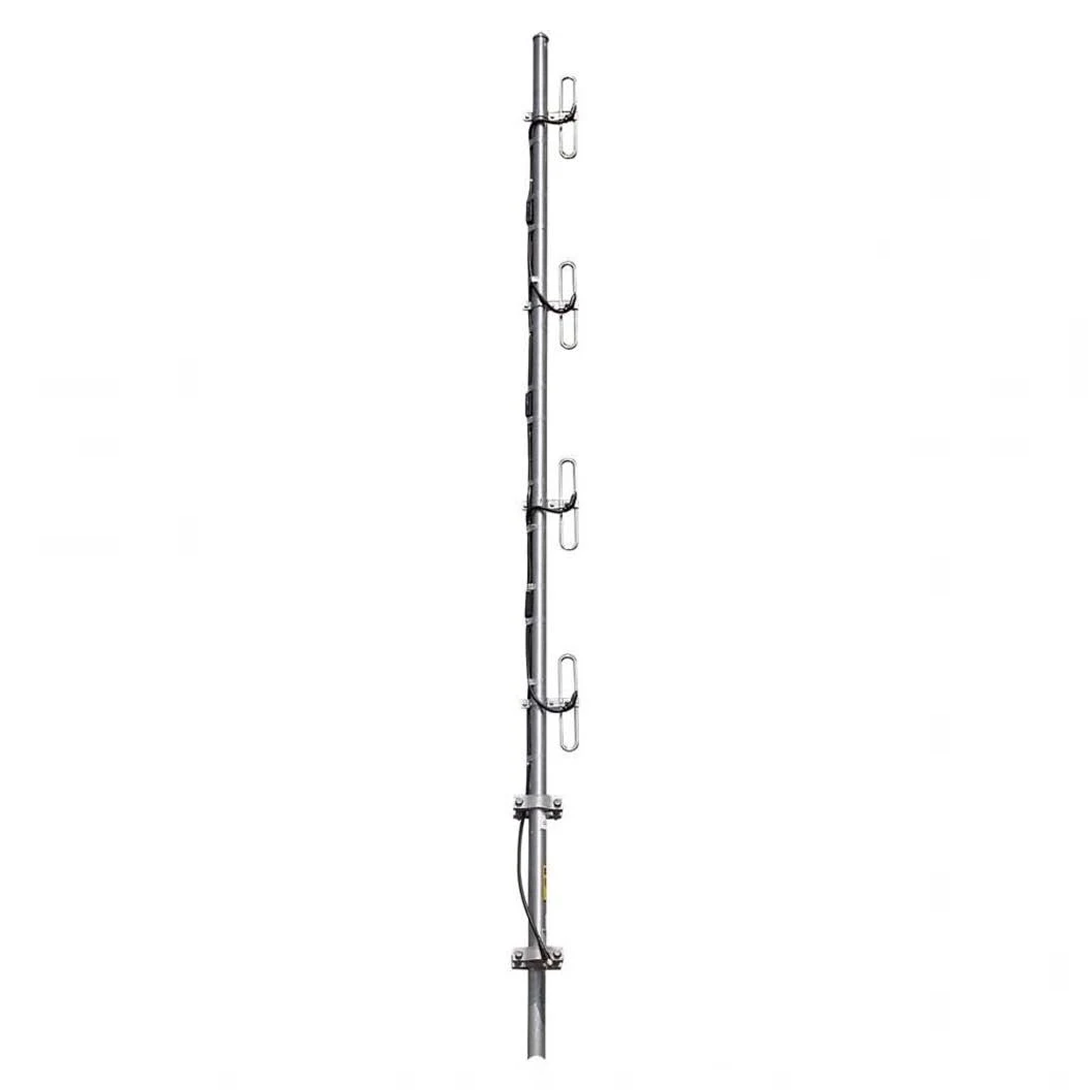

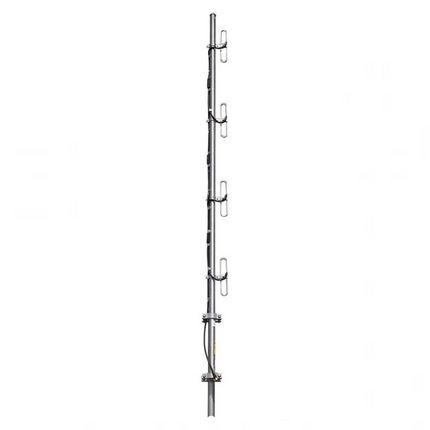

Commscope DB411-B
High-Performance Dipole Antenna for 450-470 MHz
The Commscope DB411-B is a 4-bay, collinear exposed dipole antenna designed for the 450-470 MHz frequency band. It offers a 9 dB gain and an elliptical pattern, making it suitable for various applications. This antenna can be mounted to the top or side of a tower for optimal positioning
Key Features
-
Frequency Range: 450-470 MHz
-
Gain: 9 dB
-
Dipole Type: 4-bay, collinear exposed dipole
-
Radiation Pattern: Elliptical
-
Mounting: Top or side tower mount
-
Maximum Input Power: 250 Watts
-
Bandwidth: 20 MHz
-
Vertical Beamwidth: 14 degrees
-
Lightning Protection: Direct Ground
-
Connector: N Male
-
Length: 9.42 feet (2870.2 mm)
-
Weight: 25 lbs (11.3 kg)
-
Wind Load: 1.5 sq ft
-
Rated Wind Velocity: 100 MPH
Benefits
-
High Gain: Provides strong signal strength and improved coverage.
-
Broadband Performance: Covers a wide frequency range for versatile applications.
-
Flexible Mounting: Can be mounted on the top or side of a tower for optimal placement.
-
Rugged Construction: Designed for reliable operation in various weather conditions.
-
Lightning Protection: Offers direct ground lightning protection for enhanced safety.
Warranty
2-year manufacturer's warranty
