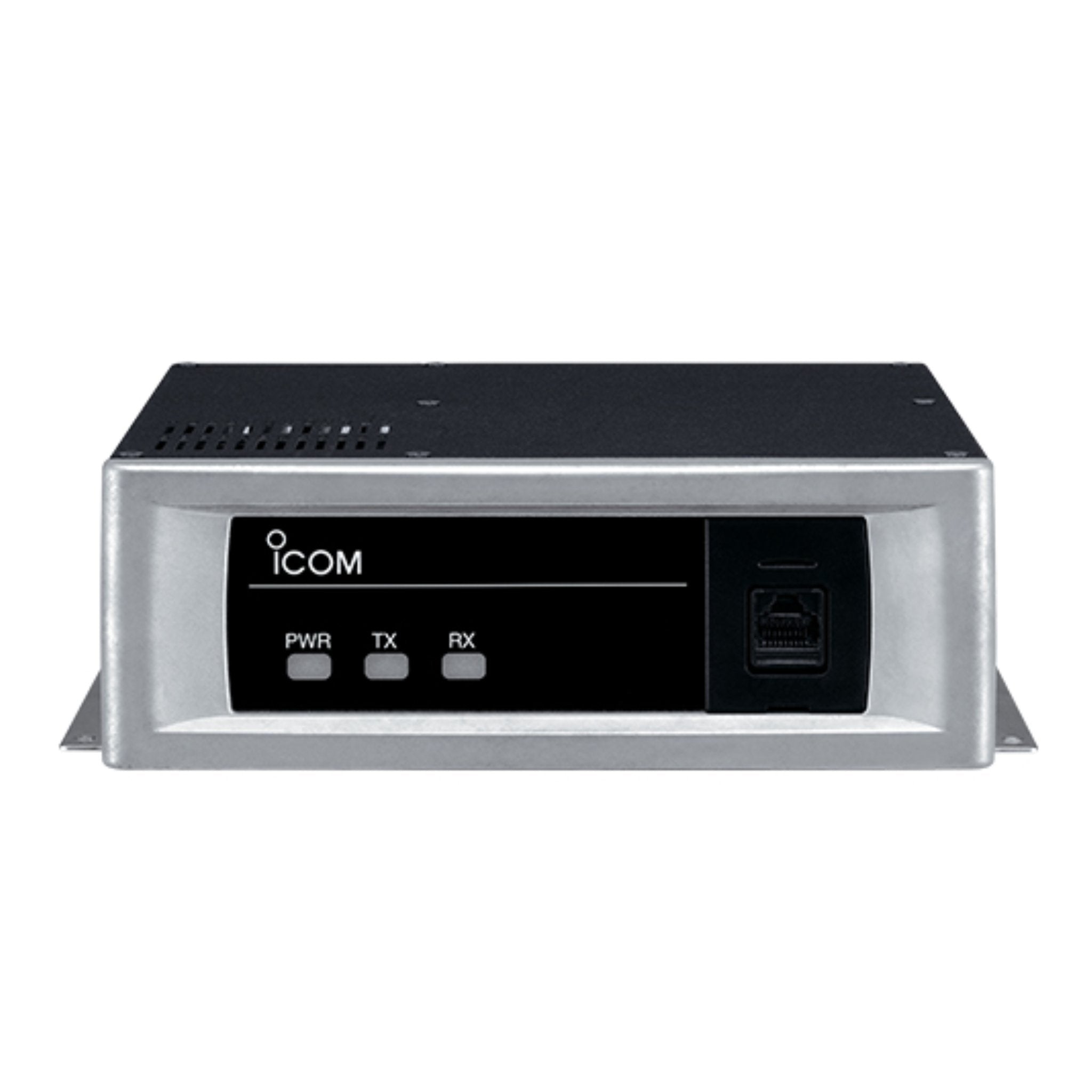

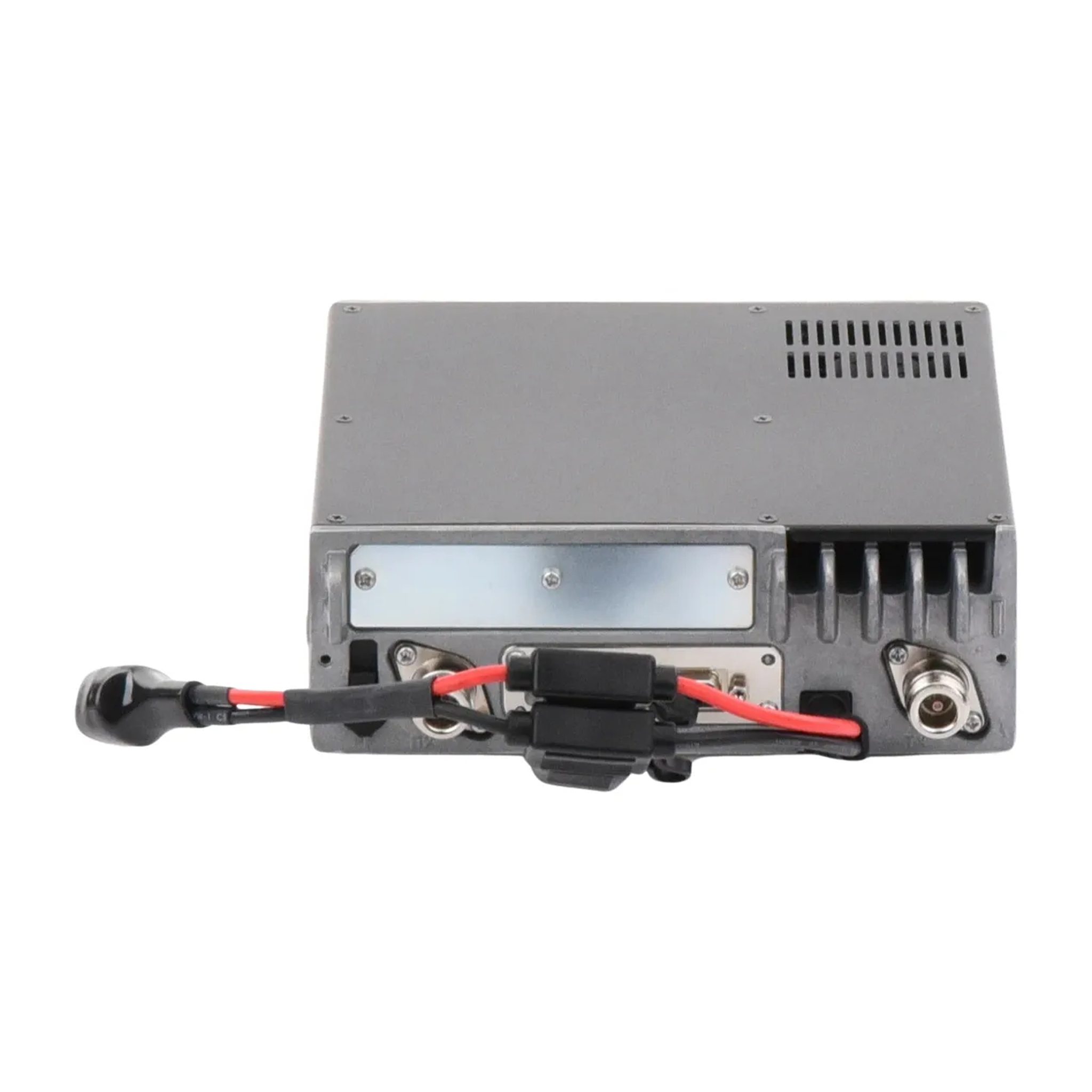

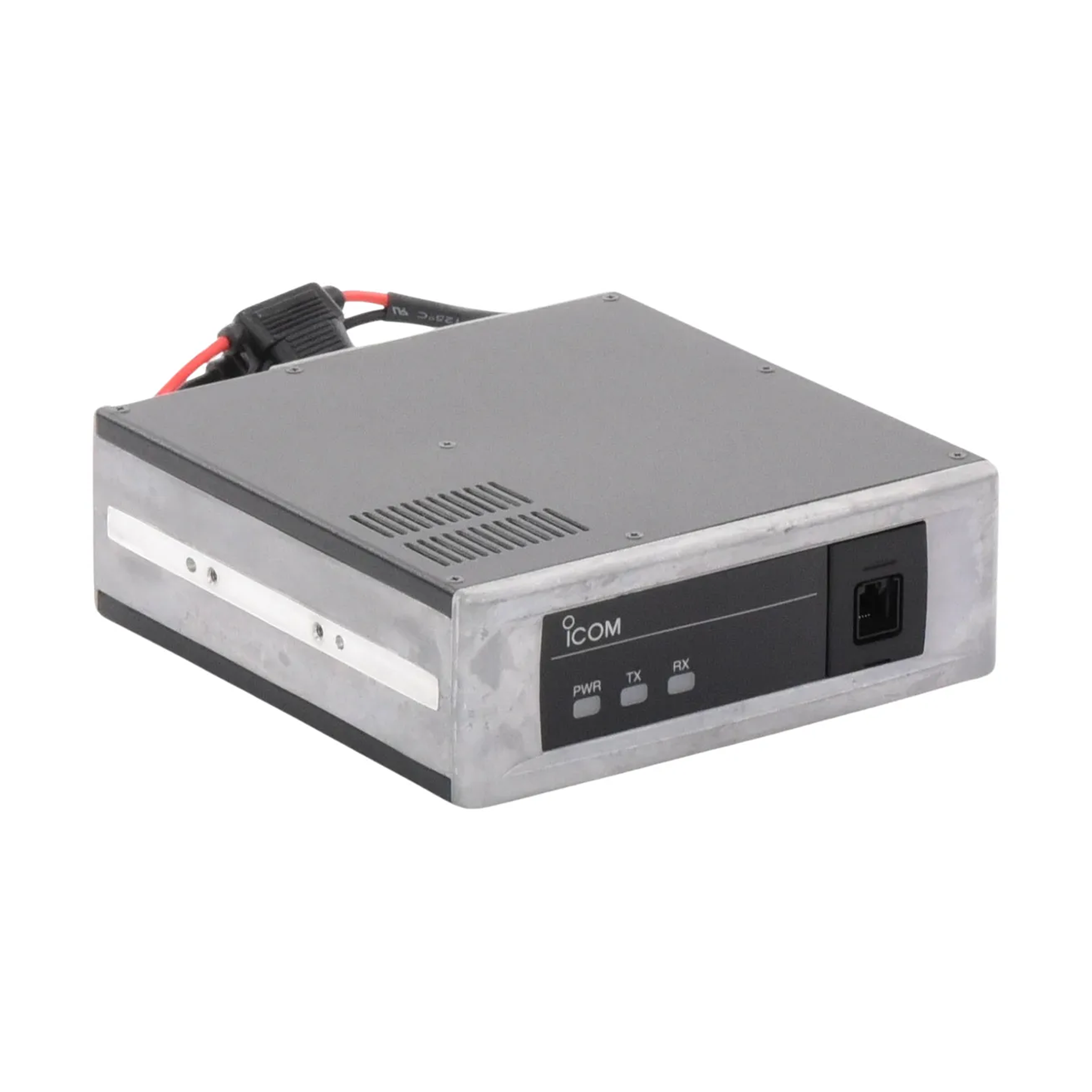

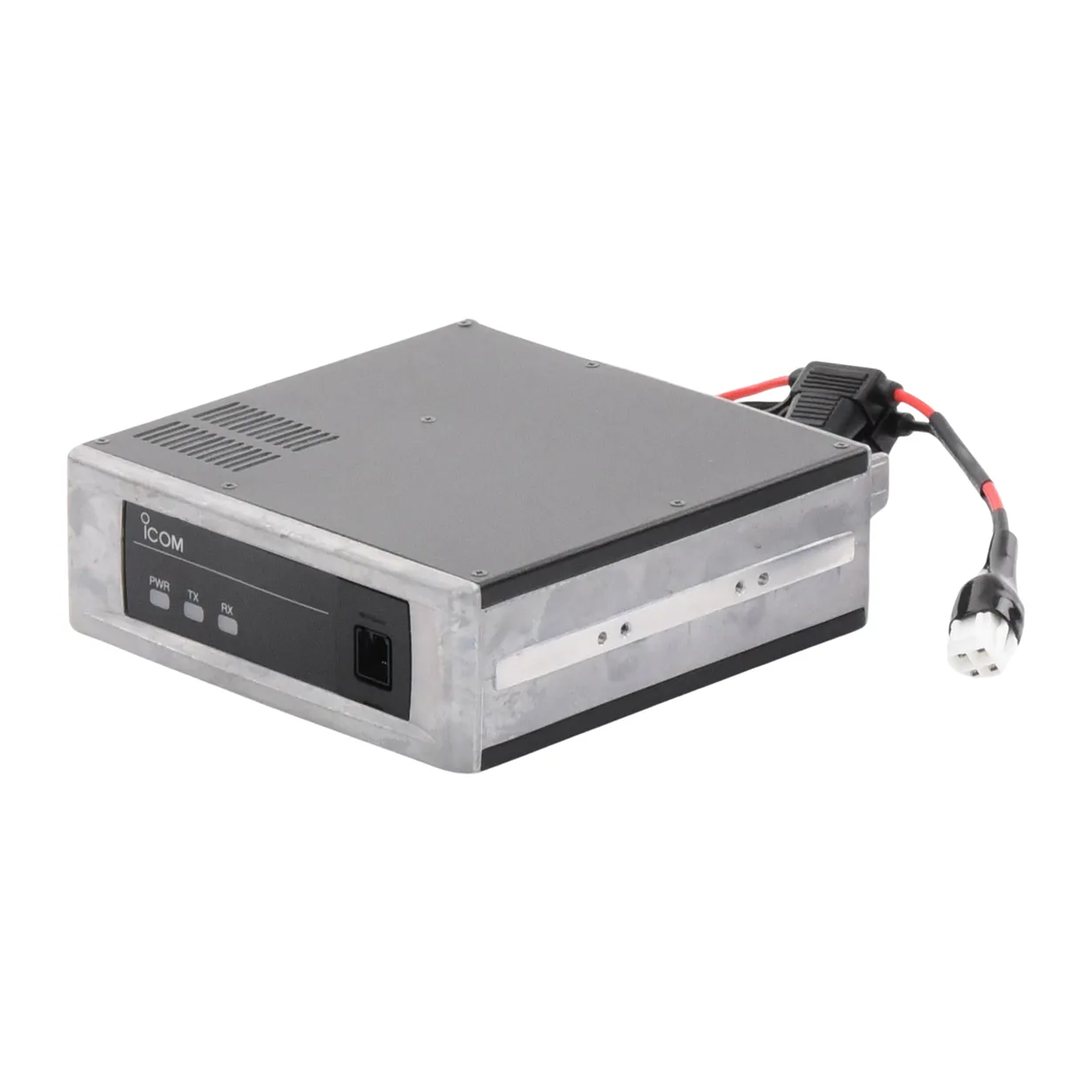

Icom URFR6300
UHF REPEATER FOR ANALOG & DIGITAL (NXDN) RADIOS
The Icom URFR6300 is a repeater for two-way radios that works in analog and digital (NXDN) mode. This channel module works in UHF (400-470 or 450-512MHz) and 50 watts of power output. The URFR6300 is the perfect option for any UHF repeater application. Atlantic Radio recommends the URFR6300 for government, education, ports, hotels, condos, HOA, marinas, boats, hunting, construction, events and more.
AVAILABLE URFR6300 REPEATER VERSIONS
- URFR6300 75 USA (450-512MHz Repeater module)
- URFR6300 81 USA ( 400-470MHz Repeater module)
The Icom URFR6300 is programmable by Atlantic Radio or the end-user. For Atlantic Radio Programming Services, please contact us here: Contact Atlantic Radio.
For programming, the URFR6300 requires an Icom OPC-2344 programming cable and CS-FR5300 (v1.21) cloning software.
The OPC-2344 cloning cable is found here: ICOM OPC2344.
The customer programming software is included with the purchase of a URFR6300 or OPC2344.
Atlantic Radio offers its own line of duplexers that are compatible with the URFR6300. These duplexers include tuning and a 2-year warranty.
See here for more information: Atlantic Radio UHF 50W 6-Cavity Duplexer
UR-FR6300 KEY FEATURES
- UHF (400-470 or 450-512MHz)
- Digital (NXDN)
- Analog
- 32 Channels (1 zone)
- RF Output: 50 Watts 25 Watts 5 Watts (Hi, L2, L1)
- Sensitivity: Digital (1% BER) or Analog (12 dB SINAD)
- 13.6 V DC nominal
- N Type Connection
WARRANTY
*2-year manufacturer's warranty on the repeater.
